가공전용기 자동화라인

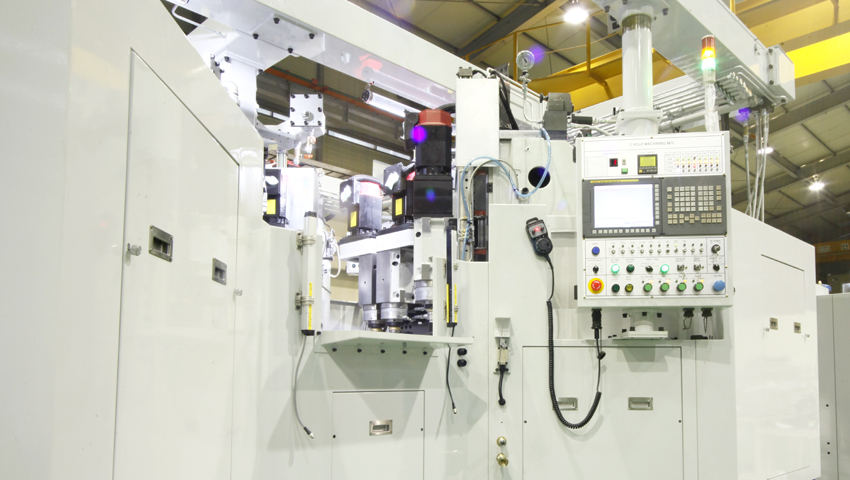

Body Port Processing ROTARY INDEX MACHINE

특징
  • 빠른 사이클 타임 실현 (Caliper Body 기준 22sec/EA)

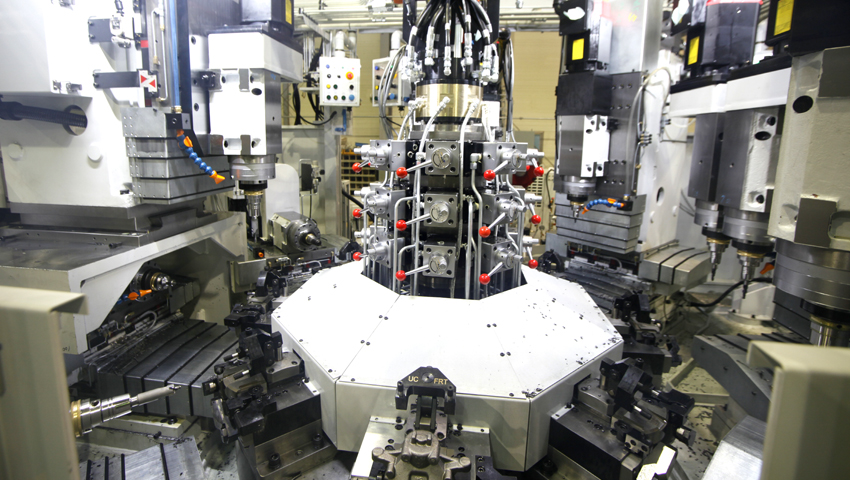

  • SPINDLE HEAD 1축 과 FEED UNIT 1축이 방사형으로 7SET로 구성
  • 각 SET별 개별 제어
  • NC INDEX 적용으로 정밀도 향상

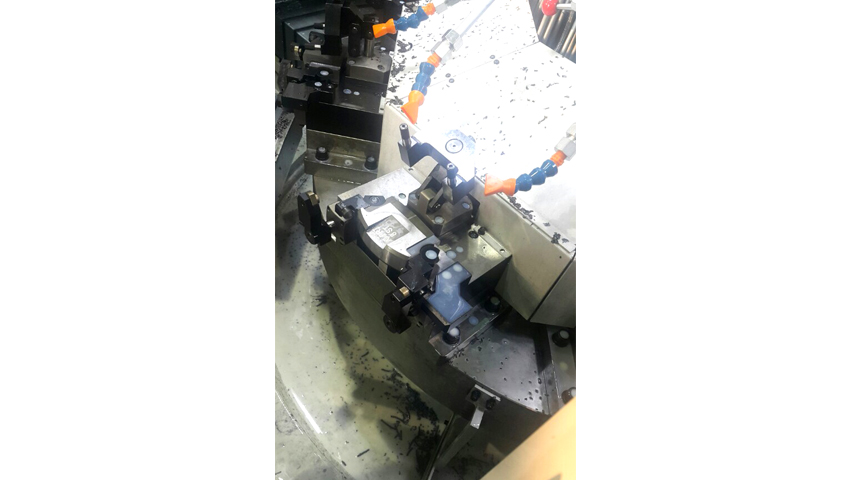

  • JIG BASE 표준화로 인한 JIG 교체 용이
  • NC 시스템 적용으로 프로그램 변경 용이 및 조작 간편화
일반사양
(주)지이엠
구분 항목 규격
Feed X축
(2,4-ST) 		Unit Ass’y 450-300/500-100
Servo Motor a12/3000i (3kW)
Ball Screw FEM-E-S 40-10Rx6-4+918L-C5
Coupling EDL-10SH-Ø35/Ø26
Slide Type 2MR55-D2-1017-G2V2-SO-2ZCN-2ASM-MRK
Feed Y축
(2,4-ST) 		Unit Ass’y 450-300/500-100
Servo Motor a12/3000i (3kW)
Ball Screw FEM-E-S40-10R×6-4+721L-C5
Coupling P35-8YU-PULLEY, 192-8YU-50 (Belt)
Slide Type 2MR55-C2-650-21.5-28.5-G2V2-SO-2ZCN-2ASM-MRK
Index Index Type Servo Index
Spindle
(2,4-ST) 		Head GEM-SP65
Bearing NN3013K (Φ65)
562013 (Φ65)
NN3011K (Φ55)
Servo Motor a2/10000i (2.2kW)
구동 Belt 880-S8M-50
Max. RPM 2500 RPM
Feed X축
(3-ST) 		Unit Ass’y 450-300/500-100
Servo Motor a12/3000i (3kW)
Ball Screw FEM-E-S 40-10R×6-4+ 918L-C5
Coupling EDL-10SH-Ø35/Ø26
Slide Type 2MR55-D2-1017-G2V2-SO-2ZCN-2ASM-MRK
Feed Y축
(3-ST) 		Unit Ass’y 450-300/500-100
Servo Motor a12/3000i (3kW)
Ball Screw FEM-E-S 40-10R×6-4+ 721L-C5
Coupling P35-8YU-PULLEY,192-8YU-50 (BELT)
Slide Type 2MR55-C2-650-21.5-28.5-G2V2-SO-2ZCN-2ASM-MRK
Feed Z축
(3-ST) 		Unit Ass’y VF-420/200
Servo Motor A22/4000i (4kW)
Ball Screw FDM-E-S 50-10R×6-6+ 670L-C5
Coupling EUL-20– Ø45/Ø28
Slide Type 2-MR55-D2-972-G2V2-SO-2ZCN-2ASM-MRK
Spindle X축
(3-ST) 		Head GEM-SP65
Bearing NN3013K (Φ65)
562013 (Φ65)
NN3011K (Φ55)
Servo Motor a1.5/10000i (1.5kW)
구동 Belt 880-S8M-50
Max. RPM 2,500RPM
Spindle Y축
(3-ST) 		Head GEM-SP65
Bearing NN3013K(Φ65)
562013(Φ65)
NN3011K(Φ55)
Servo Motor a2/10000i (2.2kW)
구동 Belt 632-S8M-40
Coupling EUL-20-D45/D28
Max. RPM 2,500RPM
4,300RPM
Feed X축
(5,7-ST) 		Unit Ass’y VF-420/200
Servo Motor aiF22/4000 4M ST (4kW)
Ball Screw FDM-E-S-40x10Rx6-6+1044L-C5
Coupling A3-20
Slide Type 2MR55-D2-940-G2V3-SO-2ZCN-2ASM-MRK
Feed Z축
(5,7-ST) 		Unit Ass’y VF-420/200
Servo Motor aiF22/4000 4M ST (4kW)
Ball Screw FDM-E-S 50-10R×6-6+ 670L-C5
Coupling EUL- 20 – Ø45/Ø28
Slide Type 2-MR55-D2-972-G2V2-SO-2ZCN-2ASM-MRK
Feed X축
(8-ST) 		Unit Ass’y GEM-FD01
Servo Motor aiF22/4000 4M ST (4kW)
Ball Screw FDM-E-S-40×10R×6-6+1044L-C5
Coupling A3-20
Slide Type 2MR55-D2-940-G2V3-SO-2ZCN-2ASM-MRK
Feed Z축
(8-ST) 		Unit Ass’y VF-420/200
Servo Motor aiF22/4000 4M ST (4kW)
Ball Screw FDM-E-S 50-10R×6-6+670L-C5
Coupling EUL- 20 – Ø45/Ø28
Slide Type 2-MR55-D2-972-G2V2-SO-2ZCN-2ASM-MRK
Spindle
(5,8ST) 		Head GEM-SP65
Bearing NN3013K (Φ65)
562013 (Φ65)
NN3011K (Φ55)
Servo Motor a2/10000i (2.2kW)
구동 Belt 632-S8M-40
Coupling
Max. RPM 2,500RPM
Spindle
(7ST) 		Head GEM-SP65
Bearing NN3013K (Φ65)
562013 (Φ65)
NN3011K (Φ55)
Servo Motor a2/10000i (2.2kW)
구동 Belt 632-S8M-40
Max. RPM 2,500RPM
Feed X축
(6-ST) 		Unit Ass’y 450-300/500-100
Servo Motor 12/3000i A10 ST (3.0kW)
Ball Screw FEM-E-S 40-10R×6-4+918L-C5
Coupling EDL-10SH-Ø35/Ø26
Slide Type 2MR55-D2-1017-G2V2-SO-2ZCN-2ASM-MRK
Feed Y축
(6-ST) 		Unit Ass’y 450-300/500-100
Servo Motor 12/3000i A10 ST (3.0kW)
Ball Screw FEM-E-S 40-10R×6-4+721L-C5
Coupling P35-8YU-PULLEY, 192-8YU-50 (Belt)
Slide Type 2MR55-C2-650-21.5-28.5-G2V2-SO-2ZCN-2ASM-MRK
Feed Z축
(6-ST) 		Unit Ass’y VF-420/200
Servo Motor A22/4000i (4kW)
Ball Screw FDM-E-S 50-10R×6-6+670L-C5
Coupling EUL- 20 – Ø45/Ø28
Slide Type 2-MR55-D2-972-G2V2-SO-2ZCN-2ASM-MRK
Spindle
(6-ST) 		Head GEM-SP65
Bearing NN3013K (Φ65)
562013 (Φ65)
NN3011K (Φ55)
Servo Motor a2/10000i (2.2kW)
구동 Belt -
Coupling EUL-20-D45/D28
Max. RPM 2,500RPM

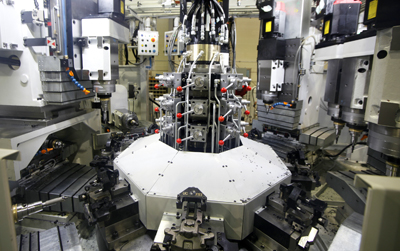

적용분야
