가공전용기 자동화라인

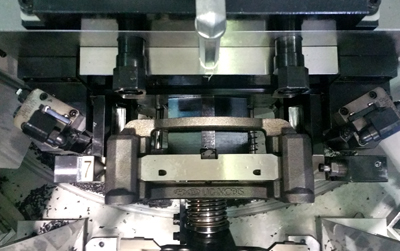

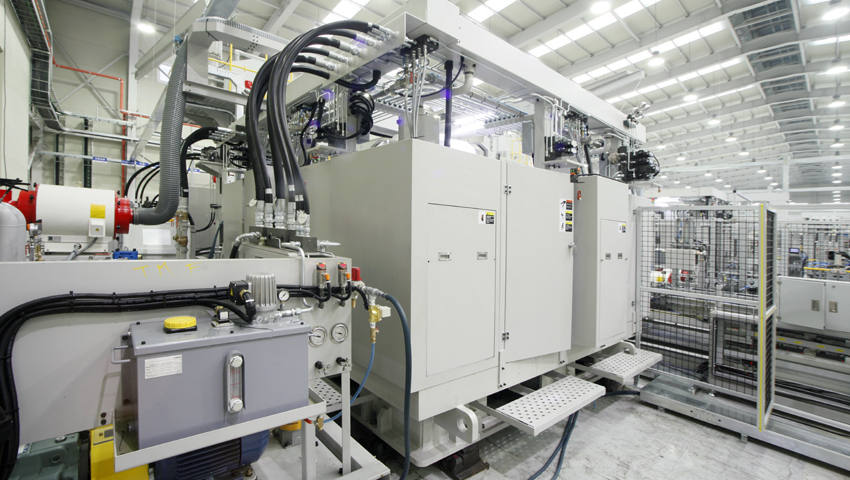

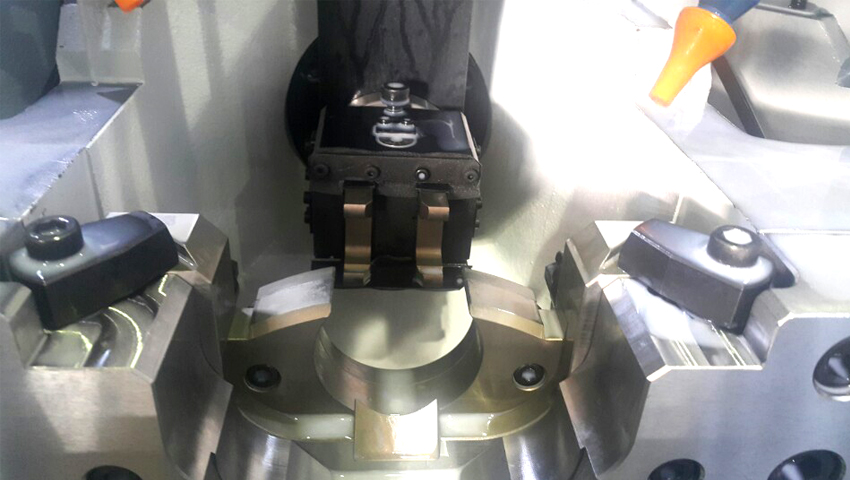

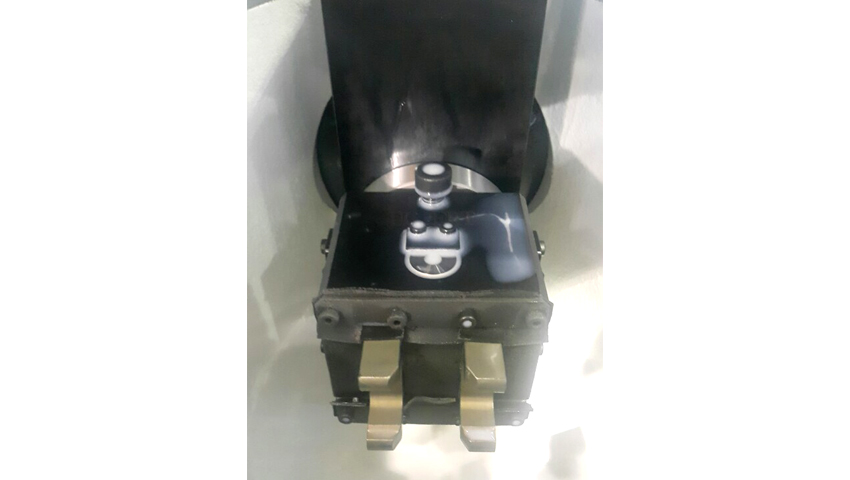

Body Bore Processing ROTARY INDEX MACHINE

특징

일반사양

(주)지이엠
구분	항목	규격
Feed (2,3,4-ST)	Unit Ass’y	GEM-FD01
	Servo Motor	Aif 22/4000 4M ST (4kW)
	Ball Screw	FDM-E-S-40×10R×6-6+1044L-C5
	Coupling	A3-20
	Slide Type	2MR55-D2-940-G2V3-SO-2ZCN-2ASM-MRK (Roller Guider Type)
Index	Index Type	Servo Index
Spindle (2,3,4-ST)	Head	GEM-SP100
	Bearing	NN3020K (Φ100)
		100 BT 10×-P4 (Φ100)
		NN3018K(Φ90)
	Servo Motor	A8/8000i (7.5kW)
	구동 Belt	V BELT 3V
	Max. RPM	4000RPM
Feed (6-ST)	Unit Ass’y	GEM-FD01
	Servo Motor	Aif 22/4000 4M ST (4kW)
	Ball Screw	FDM-E-S-40×10R×6-6+1044L-C5
	Coupling	A3-20
	Slide Type	2MR55-D2-940-G2V3-SO-2ZCN-2ASM-MRK (Roller Guider Type)
Spindle (6-ST)	Head	GEM-SP85
	Bearing	NN3017K (Φ85)
		234417TN9 (Φ85)
		NN3015K (Φ85)
	Servo Motor	A8/8000i (7.5kW)
	구동 Belt	V BELT 3V
	Max. RPM	4000RPM
Feed (5,7,8-ST)	Unit Ass’y	GEM-FD01
	Servo Motor	aiF22/4000 4M ST (4kW)
	Ball Screw	FDM-E-S-40×10R×6-6+1044L-C5
	Coupling	A3-20
	Slide Type	2MR55-D2-940-G2V3-SO-2ZCN-2ASM-MRK
Spindle (5,7,8-ST)	Head	GEM-FH90
	Bearing	32219J (Φ95)
		32218J (Φ90)
		7218C (Φ90)
	Servo Motor	A8/8000i (7.5kW)
	구동 Belt	V BELT 3V
	Max. RPM	2000RPM
Groove (5,7,8-st)	Head	PKE2501-30-101-SP
	Servo Motor	A8/3000i (2.0kW)
	Ball Screw	FEM-E-S 50×5R×6-6-12T5R-476.5L C5
