Automation Lines of Machining Special Purpose Machines

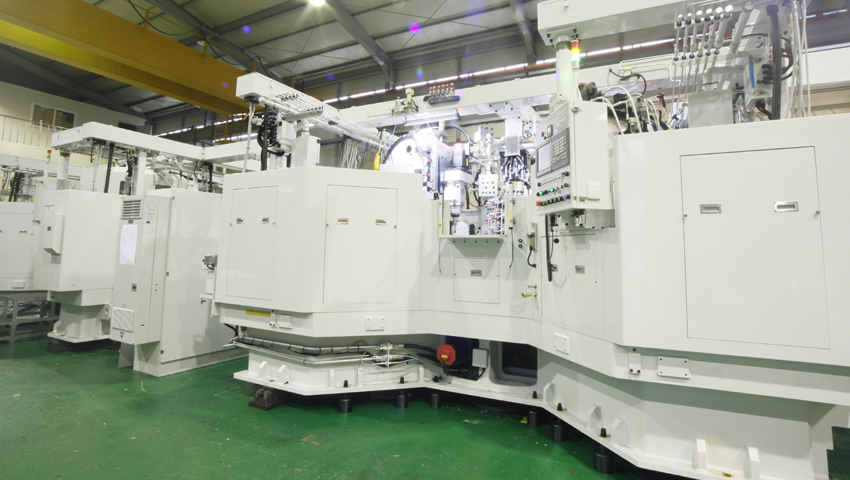

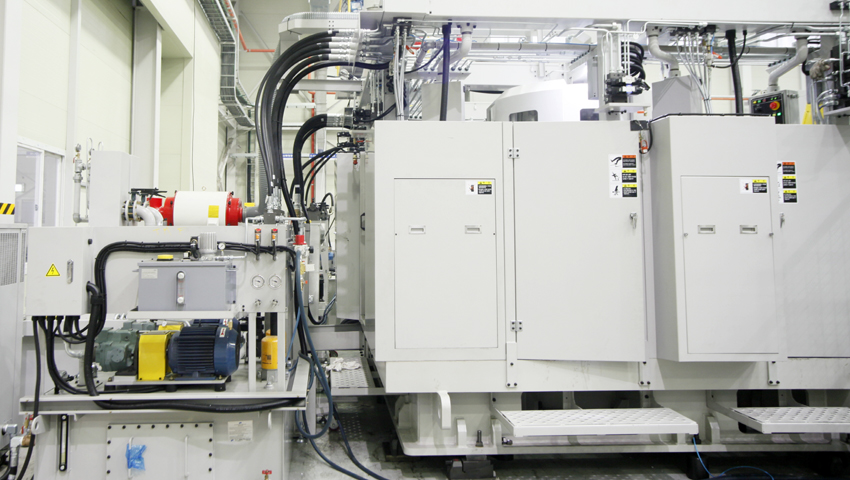

4Hole Processing ROTARY INDEX MACHINE

Features

Achieve fast cycle times (A Torque Member per 20 sec)
Configured 2 axis spindle head and 1 axis feed unit with 7sets Radial direcation
Individual control each set
Improved accuracy due to applied NC index
Easy to replace jig due to jig base standardization
Simplified operation and easy program change due to applied NC system

General Specification

GEM
Sector	Category	Standard
Feed (2~8-ST)	Unit Ass’y	GEM-FD02
	Servo Motor	Aif 22/4000 4M ST (4kW)
	Ball Screw	FDM-E-S-40×10R×6-6+1014L-C5
	Coupling	A3-20
	Slide Type	2MRB45-922.5-C2-15-15-G1V3-SO-2ZCN-2ASM-MRS (Roller Guide Type)
Index	Index Type	Servo Index
Spindle (2~5-ST)	Head	GEM-SP60
	Bearing	7012C-P4 (Φ60) NN3010K-P4 (Φ50)
	Servo Motor	Aif 3/10000 (3.7kW)
	Operation Belt	510 H150
	Max. RPM	3000 RPM
	Variable Pitch Stroke	Min.125mm Max.200mm
Spindle (6-ST)	Head	GEM-FH70
	Bearing	NN3014KTN (Φ70)
		234414TN9 (Φ70)
		NN3012KTN (Φ60)
	Servo Motor	aiF 3/10000 (3.7kW)
	Operation Belt	630 H100
	Max. RPM	1500 RPM
	Variable Pitch Stroke	Min.125mm Max.200mm
Groove (6-ST)	Head	PKE100-17-101 QA
	Servo Motor	A4/4000i (1.4kW)
	Ball screw	FDM-E-S25×5R×3-4
Spindle (7,8-ST)	Head	Special (2-Spindle)
	Bearing	NN3010K (Φ50)
		50TAC20X+L (Φ50)
		NN3008K (Φ40)
	Servo Motor	A3/10000i (3.7kW)
	Operation Belt	250 S8M
	Max. RPM	6000RPM
	Variable Pitch Stroke	Min.98mm Max.140mm

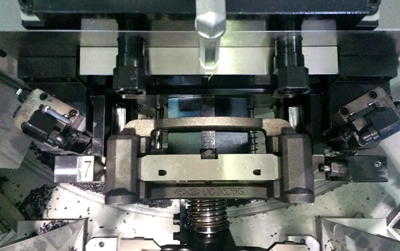

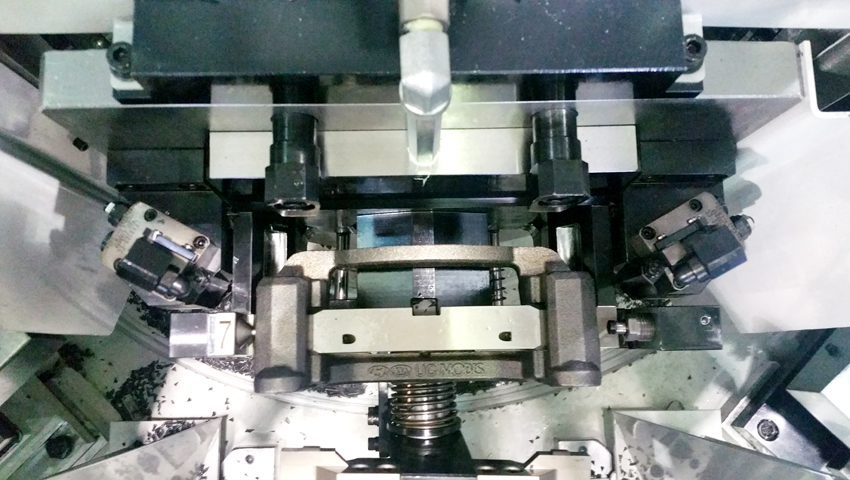

Application
